ESP32 Wireless Communication — Component Selection

1. Wireless MCU / Wi-Fi Module (Core Subsystem)

Option 1

Solution	Pros	Cons
ESP32-S3-WROOM-1-N8R8 (SMD module) Surface-mount module with integrated RF, 8MB flash, 8MB PSRAM, dual-core CPU Price: ≈ $6.13/each Product Page Datasheet	- Integrated Wi-Fi and Bluetooth - 8MB PSRAM enables OV5640 camera frame buffering - Dual-core allows multitasking (MQTT + UART + camera) - Same footprint as N4, drop-in replacement - RF section already optimized inside module	- Slightly larger footprint than bare chip - Requires antenna keepout area on PCB - ~$1.07 more than N4 variant

Option 2

Solution	Pros	Cons

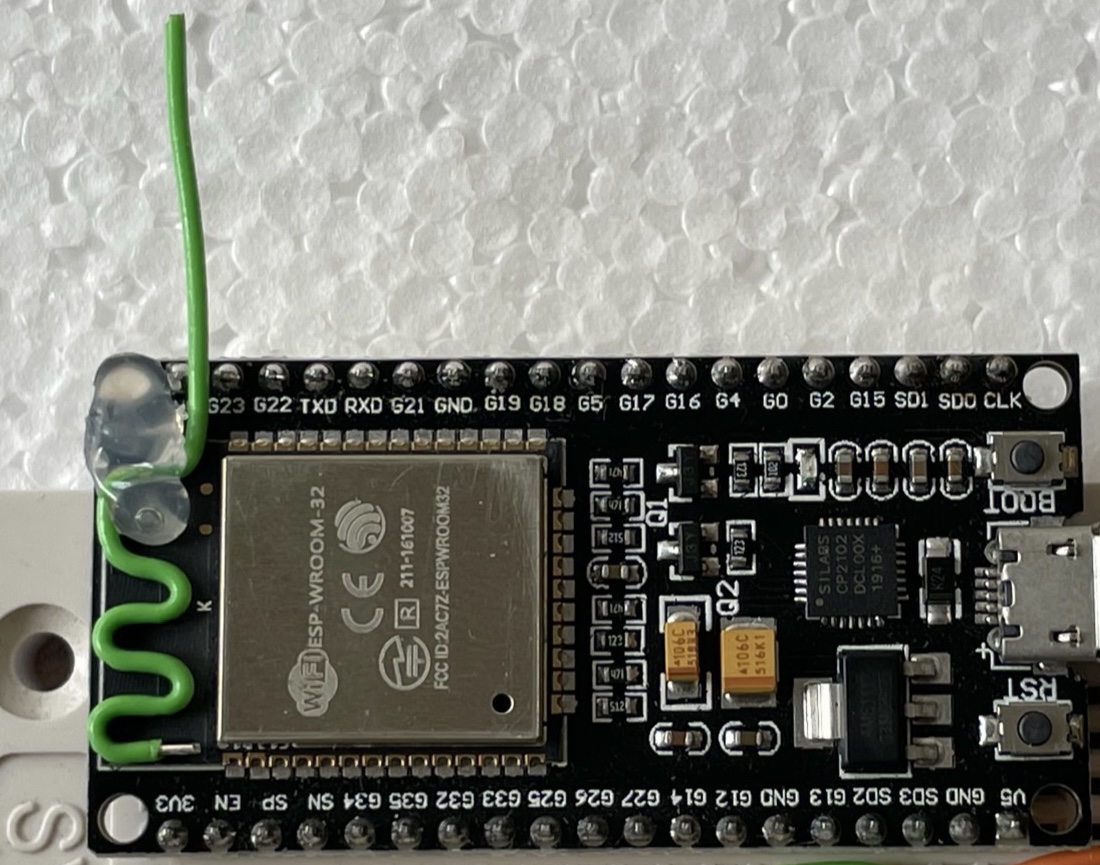

ESP32-WROOM (classic) Price: ≈ $6.56/each Datasheet	- Widely used and well-documented - Reliable Wi-Fi performance - Strong software ecosystem	- Older architecture compared to S3 - Fewer advanced features (USB support, improved peripherals) - Higher cost than S3 module in this case

Option 3

Solution	Pros	Cons
ESP32-S3 (bare QFN chip) Price: ≈ $2.13/each Datasheet Standalone MCU without integrated RF module packaging	- Lowest cost per unit - Smallest PCB footprint - Maximum control over layout and antenna design	- Requires custom RF layout and impedance matching - Higher assembly difficulty (QFN package) - Increased design risk for first PCB revision

Choice: Option 1 — ESP32-S3-WROOM-1-N4 Rationale: The ESP32-S3-WROOM-1-N8R8 module is selected because it provides the most reliable and capable solution for implementing Wi-Fi, MQTT communication, and OV5640 camera streaming in this subsystem. The 8MB PSRAM is a hard requirement, without it, the esp_camera driver cannot allocate frame buffers at usable resolutions, and the camera integration would fail entirely. The $1.07 cost increase over the N4 variant is fully justified by this capability.

The S3 architecture also provides improved performance and peripheral support compared to the classic ESP32-WROOM-32, while still remaining affordable. Its dual-core design allows separation of networking tasks (MQTT publishing, reconnection handling) from UART daisy-chain communication and camera data processing simultaneously. The N8R8 uses the identical PCB footprint as the N4, meaning no layout changes were required when upgrading. Although the module has a slightly larger footprint than the bare QFN chip, the reduction in RF tuning risk, integrated PSRAM, and faster bring-up time make it the optimal choice for this project.

2. 3.3 V Switching Regulator (Power Subsystem)

Option 1

Solution	Pros	Cons
AP63203WU-7 2A synchronous buck regulator, SOT-23-6 package, fixed 3.3V output Price: $0.71/each Product Page Datasheet	- Very compact SOT-23 package - Low cost and widely available - Simple external component requirements - Fully SMD compatible	- Moderate efficiency under higher load - Can generate noticeable heat during Wi-Fi transmit bursts - Limited current margin for future expansion

Option 2

Solution	Pros	Cons
TI TPS62840DLCR High-efficiency synchronous buck converter, optimized for low quiescent current and battery-powered systems Price: $2.08/each Product Page Datasheet	- Up to 95% efficiency across wide load range - Excellent transient response for radio current spikes - Very low quiescent current (good for battery demos) - Lower heat generation compared to basic buck regulators	- Higher cost than AP63203 - Requires careful PCB layout and proper inductor selection - Slightly more complex BOM

Option 3

Solution	Pros	Cons
MCP1640B Boost + LDO Combination (PMIC-style approach) High-efficiency DC-DC converter combined with linear regulator for multi-rail designs Price: $0.81/each Product Page Datasheet	- Flexible voltage configuration - Can support additional rails in future revisions - Efficient switching topology	- More complex design than needed for single 3.3V rail - Larger PCB footprint - Extra components increase layout difficulty

Choice: Option 1 — AP63203WU-7 Rationale: I chose the AP63203WU-7 because it keeps the power circuit simple while still meeting the current requirements of the ESP32-S3. The fixed 3.3V output means I don't need to calculate or place feedback resistors, the datasheet application circuit is just an inductor and two capacitors, which is exactly what's shown in my schematic. At 600 mA output, it comfortably handles the ESP32's typical operating current with enough headroom for Wi-Fi bursts.

I did consider the TPS62840 for its higher efficiency, but after looking at the numbers, the AP63203 is more than adequate for this design. The ESP32-S3 draws around 250–350 mA during active Wi-Fi transmission, which is well within the AP63203's rating. The efficiency difference doesn't justify paying three times the price, especially since this board will mostly be powered from a bench supply during demos rather than running on battery. The MCP1640B is a boost converter, which steps voltage up, so it simply can't be used to regulate down from 9V, that option was eliminated right away.

3. Power Input / Connector Strategy (Mechanical Interface)

Option 1

Solution	Pros	Cons
CUI Devices PJ-102A DC Barrel Jack (2.1mm) Through-hole DC barrel jack connector, 5.5mm OD / 2.1mm ID, widely used in lab power supplies Price: $0.59/each Product Page Datasheet	- Mechanically strong and reliable - Standard lab power connector - Compatible with common 9V wall adapters - Easy to solder and secure to PCB	- Larger footprint than USB-C - Requires external wall adapter

Option 2

Solution	Pros	Cons
USB Type-C Receptacle (GCT USB4105-GF-A) Mid-mount USB-C connector supporting up to 3A current Price: $0.78/each Product Page Datasheet	- Reversible and modern connector - Can support both power and data - Compact profile	- Requires CC resistors or PD controller configuration - More complex routing and ESD protection - Less mechanically robust than barrel jack in repeated demo use

Option 3

Solution	Pros	Cons
JST-PH 2-Pin Connector (B2B-PH-K-S) 2.0mm pitch PCB header for battery connection, compact and lightweight Price: $0.10/each Product Page Datasheet	- Very compact footprint - Ideal for Li-ion battery integration - Low cost	- Not ideal for wall power supplies - Lower mechanical retention compared to barrel jack - Requires separate charging circuitry

Choice: Option 1 — CUI PJ-102A DC Barrel Jack + Board Jumpers
Rationale: The DC barrel jack is selected because it aligns directly with the EGR314 project requirements, which specify the use of a barrel-jack adapter and jumper-controlled bus power integration. This ensures compatibility with standard 9V lab power supplies and simplifies system-level verification.

While USB-C offers a more modern interface, it introduces additional complexity such as configuration channel resistors, potential Power Delivery negotiation, and stricter layout requirements. For a student-built PCB focused on reliable wireless communication, that added complexity is unnecessary.

The JST battery connector is compact and useful for portable designs, but it does not meet the course expectation for wall-powered lab testing and demonstration.

By choosing the barrel jack, I ensure mechanical robustness, compliance with course standards, and straightforward hardware verification during external design review.

4. Antenna Solution (RF Subsystem)

Option 1

Solution	Pros	Cons
Johanson 2450AT18A100E Chip Antenna (2.4 GHz SMD) Compact 2.4 GHz surface-mount ceramic chip antenna requiring matching network Price: $0.51/each Product Page Datasheet	- Designed specifically for 2.4 GHz Wi-Fi/Bluetooth - Repeatable RF performance across builds - Small footprint and SMD compatible - Industry-standard component	- Requires proper impedance matching network - Strict PCB layout and ground keepout requirements - Slightly increases BOM count

Option 2

Solution	Pros	Cons
ESP32-S3-WROOM-1-N8R8 (SMD Module with Integrated PCB Antenna) Module variant with built-in PCB trace antenna, 8MB Flash, 8MB PSRAM Price: ≈ $6.13/each Product Page Datasheet	- Simplest implementation — no extra antenna component - RF section pre-designed and certified by Espressif - 8MB PSRAM enables camera frame buffering for OV5640 - Same footprint as N4 variant — drop-in replacement - Reduces external BOM parts	- Performance depends on host PCB placement - Must strictly follow antenna clearance recommendations - Slightly higher cost than N4 variant (~$0.44 more) - Slightly less flexible for tuning or upgrades

Option 3

Solution	Pros	Cons
u.FL / IPEX Connector + External 2.4 GHz Antenna - 66089-2406 Miniature RF connector allowing detachable external antenna Price: $6.52/each (connector only) Product Page Datasheet	- Allows use of higher-gain external antennas - Easy antenna swapping during testing - Best option for maximum range	- Connector is mechanically fragile - Adds cost and PCB area - Not ideal for repeated demo handling

Choice: Option 2 — ESP32-S3-WROOM-1-N8R8 with Integrated PCB Antenna

Rationale: I chose the ESP32-S3-WROOM-1-N8R8 specifically because it's the only variant in the WROOM-1 family that includes both 8MB of flash and 8MB of PSRAM in the same module footprint. The PSRAM is what makes the OV5640 camera integration possible without it, there's nowhere to store camera frame buffers, and the esp_camera driver simply won't initialize at any useful resolution. Upgrading from the N4 to the N8R8 costs about $0.44 more per board, which is a completely worthwhile trade for gaining full camera functionality.

Beyond the PSRAM advantage, the integrated PCB antenna version was chosen over the discrete chip antenna and u.FL connector options for the same reasons. Since the RF section is already designed, tuned, and pre-certified by Espressif, I don't need to worry about impedance matching, antenna keepout zones, or layout-induced RF performance issues on a first revision PCB. A discrete chip antenna would require a properly tuned matching network and strict ground plane management, that's extra design risk I don't need on a student board with a tight timeline.

The u.FL connector option would allow swapping in a higher-gain external antenna, which sounds useful, but the connector itself is mechanically fragile and gets damaged easily with repeated plugging during lab testing and demo sessions. For a board that's going to be handled a lot during the Innovation Showcase, that's a real concern.

The N8R8 with integrated antenna keeps the design compact, the BOM simple, and the RF bring-up risk low, while unlocking the full camera streaming capability the subsystem needs.

5. USB ↔ UART / Programming Interface (Bring-up / OTA)

Option 1

Solution	Pros	Cons
Native USB (ESP32-S3 USB D+/D− Pins) Utilizing the ESP32-S3’s built-in USB interface for programming and serial communication Price: Included in MCU cost Product Page Datasheet	- No additional USB-UART chip required - Simplest hardware design - Supports direct flashing and serial monitor - Reduces BOM cost and PCB area	- Requires correct routing of USB differential pair - Must follow USB layout guidelines carefully - Not all module variants expose USB pins

Option 2

Solution	Pros	Cons
Silicon Labs CP2102N USB-to-UART Bridge High-speed USB-to-UART bridge, widely used in development boards Price: $4.14/each Product Page Datasheet	- Reliable and widely supported drivers - Very common in ESP32 development boards - Simple UART integration - Reduces risk if USB peripheral configuration fails	- Adds extra component and footprint - Slightly increases BOM cost - Additional routing required

Option 3

Solution	Pros	Cons
2×5 Programming Header (Tag-Connect / 0.1” Header) Standard programming/debug header for external USB-to-serial adapter Price: $1.80/each Product Page Datasheet	- Very low cost - Minimal onboard components - Useful for low-level debugging	- Requires external USB-to-serial adapter - Less convenient during demos - Extra cables increase setup complexity

Choice: Option 1 — Micro USB SMD Connector (Native USB)
Rationale: The Micro USB connector serves two purposes on my board, it acts as a secondary power input through VBUS (protected by a Schottky diode D7 so it doesn't fight with the barrel jack), and it's the primary way I'll be flashing firmware using the ESP32-S3's native USB pins. Because the S3 already has USB D+ and D− built in, I don't need a separate USB-to-UART chip at all. That saves me a chip, the routing that comes with it, and about $4 off the BOM.

I looked at using USB-C with a CP2102N bridge, which is how a lot of commercial ESP32 boards are designed, but it felt like overkill here. The CP2102N works great, but it adds another IC to place and route, and since the S3 natively supports USB, it's just extra complexity for no real benefit. The 2×5 header-only option was the other end of the spectrum which is cheaper, but requiring an external adapter every time I want to flash code is something I didn't want to deal with, especially during back-to-back verification sessions. Having the USB connector directly on the board is just much more convenient.

6. Input Protection & EMI Filtering (Reliability)

Option 1

Solution	Pros	Cons
SMBJ9.0A TVS Diode + LC Input Filter Transient Voltage Suppression diode combined with series inductor and bulk capacitor for EMI filtering TVS Price: $0.33/each TVS Product Page TVS Datasheet Inductor: $0.71/each Inductor Product Page	- Protects against voltage spikes and transients - Reduces conducted EMI from switching regulator - Improves robustness when using ribbon cable bus - Relatively low added cost	- Adds extra components to BOM - Requires careful placement near input connector

Option 2

Solution	Pros	Cons
Schottky Diode + Polyfuse Schottky diode for reverse polarity/path isolation + resettable polyfuse for overcurrent Diode Price: $0.25/each Product Page Datasheet	- Simple and low cost - Schottky provides reverse polarity and path-OR protection - Polyfuse is resettable, no need to replace blown fuses during testing - Widely understood and easy to debug	- Schottky has a small forward voltage drop (~0.3V) - Polyfuse has some resistance and may trip under high transient load

Option 3

Solution	Pros	Cons
Pi Filter + Common-Mode Choke (WE-CNSW 744231091) Common-mode choke combined with capacitors for strong EMI suppression Price: $1.13/each Product Page Datasheet	- Excellent EMI suppression - Reduces noise coupling between boards - Useful for compliance-focused designs	- Larger footprint - Higher cost - Overkill for small low-voltage system

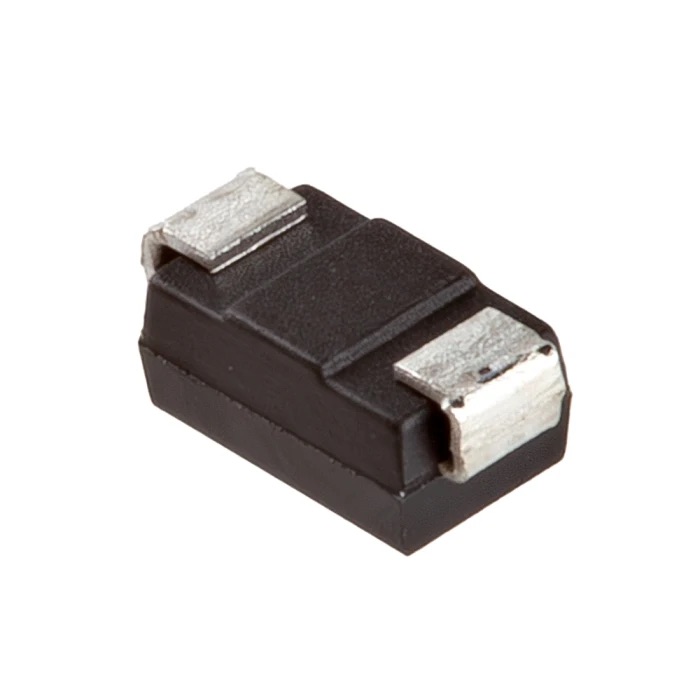

Choice: Option 2 — Schottky Diode (D_Shockley) + Polyfuse (F1)
Rationale: I went with a Schottky diode and polyfuse combination because it covers the two most likely failure scenarios during development, accidental reverse polarity and overcurrent from a short circuit, without overcomplicating the design. The Schottky diode on the barrel jack input (D1) blocks reverse voltage if the supply is plugged in backwards, which is an easy mistake to make in a busy lab. It also does the power-path OR-ing between the barrel jack and USB VBUS so both supplies can be connected at the same time without one backfeeding the other. The board mount fuse F1 (015402.5DRT) handles overcurrent, if something shorts during bring-up, the fuse blows and the holder allows easy replacement without soldering, so I can swap in a fresh fuse and get back to testing quickly.

The TVS diode option is better for protecting against voltage spikes on long cable runs, which isn't really the concern here since we're running off a regulated bench supply. The common-mode choke would help with EMI, but for a 9V/3.3V low-frequency system it's completely unnecessary and adds cost and footprint. The Schottky + polyfuse approach is simple, proven, and practical for a student lab environment.

7. Power Path Jumpers (Bus Power Control)

Option 1

Solution	Pros	Cons
2-Position 2.54mm Jumper (Wurth 732-13618-ND) Standard 2-pin shorting jumper, 2.54mm pitch Price: ~$0.35/each Product Page Datasheet	- Fulfills EGR314 required jumper specification directly - Standard 0.1" pitch — easy to manually place/remove - Extremely low cost - No tools needed for reconfiguration	- Manual operation only (not software switchable) - Small size can be lost during lab sessions

Option 2

Solution	Pros	Cons
SPDT Slide Switch Small SMD slide switch for bus power toggling Price: ~$0.40–$0.80/each	- Stays in set position without falling off - More user-friendly than removable jumpers	- Larger footprint than a 2-pin header - Not the standard EGR314 jumper approach - Harder to source in SMD form

Option 3

Solution	Pros	Cons
P-channel MOSFET Power Switch Soft-switching via GPIO control Price: ~$0.50–$1.00/each	- Software controllable - No manual intervention needed	- Significantly more complex — gate driver, pull resistors needed - Overkill for a simple power isolation requirement - Not aligned with course specification

Choice: Option 1 — Wurth 732-13618-ND 2-Position Jumper
Rationale: The course spec explicitly requires two jumpers per board, one to connect or disconnect bus power from the regulator, and one to connect or disconnect the barrel jack from the bus. The Wurth 732-13618-ND is a standard 2.54mm shorting jumper that fits a regular 2-pin header, so it satisfies that requirement directly with no fuss. Being able to physically remove a jumper to isolate my board from the team bus is really useful during debugging, because it means I can test my subsystem independently before connecting it to everyone else's hardware.

A slide switch would also work, but it takes up more PCB space and isn't the typical way jumpers are implemented in EGR314 designs. A MOSFET-based software switch could do the same thing and add remote controllability, but that would need a gate driver circuit, pull resistors, and firmware support, way more complexity than what this requirement calls for. A simple removable jumper does the job perfectly.

8. GPIO Headers & Expansion Pins (Connectivity)

Option 1

Solution	Pros	Cons
Harwin M52-040023V2045 (2×10, 1.27mm pitch SMD) SMD vertical header, 20-pin, 1.27mm pitch Price: ~$2.94/each Product Page Datasheet	- Compact 1.27mm pitch saves PCB area - SMD compatible — no drilling required - Provides access to ESP32 GPIO, UART, and debug pins - Sufficient pin count for all required signals	- Smaller pitch requires careful soldering - Not compatible with standard 0.1" breadboard jumpers

Option 2

Solution	Pros	Cons
Standard 2.54mm Through-Hole Pin Header (1×10 or 2×5) Price: ~$0.20–$0.40/each	- Universal 0.1" pitch — works with standard jumper wires - Easy to hand solder	- Larger PCB footprint - Through-hole requires drilling in PCB - Less professional appearance for a compact SMD design

Option 3

Solution	Pros	Cons
No Expansion Headers (Direct Trace Routing Only) Price: $0	- Minimum PCB area used - Cleanest board layout	- No external probe access to GPIO signals - Makes debugging extremely difficult - Fails to support team integration requirements

Choice: Option 1 — Harwin M52-040023V2045
Rationale: I chose the Harwin M52-040023V2045 because it gives me a way to break out the key GPIO signals I need, RX/TX, UART daisy chain lines, BOOT, ENABLE, and some spare pins, in a compact SMD footprint that keeps the board looking clean. The 1.27mm pitch is smaller than a standard 0.1" header, but it's still solderable by hand and the pin count is enough to expose everything I need without running out of space.

Standard through-hole 0.1" headers would definitely be easier to plug jumper wires into, but they require drilling the PCB and take up significantly more area. For a subsystem board that's already fairly busy with the ESP32 module, regulator, protection circuitry, and connectors, saving that space matters. Leaving out expansion headers entirely wasn't really an option either, without them, it would be very difficult to probe signals or connect to teammate boards during integration, which would slow down the whole team's verification process.

9. Daisy Chain Connectors (Upstream / Downstream)

Option 1

Solution	Pros	Cons

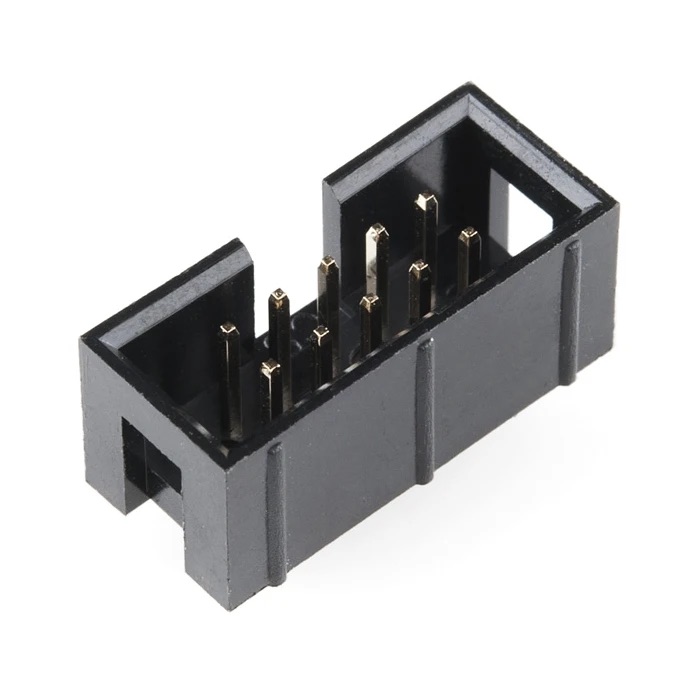

2×4 IDC Female Header (8-pin, 2.54mm pitch) Standard 8-wire ribbon cable IDC connector for EGR314 daisy chain bus Price: ~$0.50–$0.80/each Product Page Datasheet	- Directly specified by EGR314 project requirements - Keyed IDC connector prevents incorrect insertion - Compatible with standard ribbon cable assemblies - Provides all required pins: VCC, GND, UART TX/RX, and extra GPIO	- Through-hole mounting required - Slightly larger footprint than custom connectors
### Option 2

Solution	Pros	Cons
JST-XH 8-Pin Connector Price: ~$0.30/each	- Compact and lightweight - Secure locking mechanism	- Not the EGR314 specified connector standard - Not compatible with team ribbon cable assemblies - Would require custom cables

Option 3

Solution	Pros	Cons
Screw Terminal Block (8-pin) Price: ~$1.00/each	- Very robust mechanical connection - Easy wire attachment	- Very large PCB footprint - Not IDC ribbon cable compatible - Does not meet course connector standard

Choice: Option 1 — 2×4 IDC Female Header (8-pin)
Rationale: This one was basically decided by the course spec. EGR314 requires all boards to use an 8-wire ribbon cable with a 2×4 IDC female header for the daisy chain network, so using anything else would mean my board can't physically connect to my teammates' boards. I have two of these, one for the upstream connection (Connector In) and one for the downstream connection (Connector Out), which matches the layout shown in the class daisy chain diagram.

JST connectors are nice for compact designs but they aren't IDC ribbon-compatible, so the whole team would need custom cables just for my board, which isn't practical. Screw terminals are extremely bulky and also incompatible with ribbon cables. There really wasn't a decision to make here, the 2×4 IDC header is the only option that keeps my board compatible with the rest of the system.

10. Status & Debug LEDs (Testability)

Option 1

Solution	Pros	Cons
SMD LED 0805 Green Diffused (ams-OSRAM) Standard green SMD LED, 0805 package Price: ~$0.15/each Product Page Datasheet	- Small 0805 footprint — easy to hand solder - Standard current requirements (10–20mA) work with 220Ω resistor at 3.3V - Bright enough for lab visibility - Low cost per unit	- Only one color — less informative for multi-state debug

Option 2

Solution	Pros	Cons
RGB SMD LED (Common Cathode) Price: ~$0.50–$1.00/each	- Multiple colors allow distinct status indication - Single LED replaces 3 status LEDs	- Requires 3 GPIO pins per LED - More complex firmware - Higher cost

Option 3

Solution	Pros	Cons
WS2812B Addressable LED Price: ~$0.30/each	- Single-wire control for full color - Chainable	- Requires specific timing protocol - Overkill for basic status indication - More complex firmware overhead

Choice: Option 1 — Green SMD LED 0805 (×5)
Rationale: I'm using five green 0805 LEDs spread across the board for different debug purposes, two are tied to the RX and TX test points (pins 41 and 40) so I can visually confirm data is flowing through the UART lines, and the others give me status feedback for various GPIO states. The 0805 package is small enough to fit comfortably on the board but still large enough to solder by hand without too much difficulty, and a simple 220Ω current-limiting resistor at 3.3V keeps each one in the right operating range.

RGB LEDs would be cool for showing different states with different colors, but each one would need three separate GPIO pins and more complex firmware logic to control. That's a lot of overhead for what is basically a debugging aid. WS2812B addressable LEDs are even more involved, they need a specific single-wire timing protocol and their own power filtering. Both options are overkill for this use case. Simple green LEDs tell me what I need to know during bring-up and verification without adding any complexity to the firmware or the schematic.

11. Tactile Buttons (User Input)

Option 1

Solution	Pros	Cons
CTS 222AMVBAR SPST-NO Tactile Switch (SMD) Top-actuated surface-mount tactile switch Price: $0.22/each — SPST-NO, 12 V, 0.05 A rating Product Page	- Surface-mount gull-wing — fits cleanly on PCB - Excellent tactile feedback and reliable operation - Compact footprint - 12V rated, well above 3.3V logic requirements	- Still a small surface switch — may be slightly harder to press than a larger thru-hole button

Option 2

Solution	Pros	Cons
Through-hole 6 mm Tactile Push Button Price: ~$0.15/each	- Larger button surface — easier to press - Very widely available	- Through-hole requires PCB drilling - Taller profile

Option 3

Solution	Pros	Cons
Capacitive Touch Pad (Standalone IC) Price: ~$1.00–$2.00/each	- No mechanical parts — higher longevity - Modern interface	- Requires additional IC and firmware driver - Susceptible to false triggers in lab EMI environment - Overkill for boot/enable functions

Choice: Option 1 — CTS 222AMVBAR SPST-NO Tactile Switch (×2)
Rationale: I need two buttons on this board — one for BOOT to put the ESP32 into download mode, and one for ENABLE to manually reset it. I went with the CTS 222AMVBAR because it's a compact top-actuated SMD switch with solid tactile feedback, and its gull-wing footprint integrates cleanly onto the PCB without needing any drilled holes. The 0.05A, 12V rating is way more than needed for a 3.3V GPIO input, so there's no concern about it being underspecced for this application. Each switch is paired with a 470Ω pull-up resistor to 3.3V and a 0.1µF decoupling capacitor to GND, which is the standard ESP32 boot and reset button circuit.

Through-hole buttons would honestly be a bit easier to press during demos since the surface area is bigger, but they require drilling the PCB and sit noticeably taller than the rest of the surface-mount components, which I wanted to avoid. Capacitive touch is an interesting option in theory, but it needs a dedicated controller IC, firmware driver, and is well known for being sensitive to RF noise, which is a real concern on a board that's actively running Wi-Fi. For two simple pushbuttons, there's no reason to add that complexity.

Final Component Selection Summary

The table below summarizes the major components selected for the ESP32 Wireless Communication subsystem.
This excludes passive components (resistors, capacitors, inductors) and standard PCB hardware.

Subsystem	Component	Manufacturer	Key Specs	Price	Source
Wireless MCU	ESP32-S3-WROOM-1-N8R8	Espressif Systems	Dual-core, 8MB Flash, 8MB PSRAM, Wi-Fi + BLE, native USB D+/D−	$6.13	DigiKey
3.3V Regulation	AP63203WU-7	Diodes Incorporated	2A synchronous buck, TSOT23-6, fixed 3.3V output	$0.71	DigiKey
Primary Power	PJ-102A Barrel Jack	Same Sky (CUI)	5.5mm × 2.1mm DC input, through-hole, 9V supply	$0.59	DigiKey
Secondary Power / Programming	USB3131-30-0230-A Micro USB	GCT	USB_B_Micro vertical THT, VBUS backup power + native ESP32 USB flashing	$0.78	DigiKey
RF Antenna	Integrated PCB Antenna (Module)	Espressif Systems	2.4 GHz Wi-Fi antenna built into WROOM module	Included	DigiKey
Camera Module	Adafruit OV5640 Breakout	Adafruit	5MP, DVP interface, onboard oscillator, requires PSRAM for frame buffers	$17.50	DigiKey
Input Protection	MBRS340T3G + 015402.5DRT	onsemi + Littelfuse	Schottky 40V 3A reverse polarity + 2.5A board mount replaceable fuse SMD	$0.70 + $4.60	DigiKey
Bus Power Jumpers	HMSC-G Shunt Jumper	Adam Tech	1.27mm pitch shorting jumper ×4 (bus + barrel jack isolation)	$0.16 ea	DigiKey
Daisy Chain Connectors	2×4 IDC Pin Header 2.54mm	Various	8-pin, 2.54mm pitch, ribbon cable compatible ×2	~$0.00	Peralta
Camera Connector	2×9 Pin Header 2.54mm	Various	18-pin, 2.54mm pitch, DVP camera interface	~$0.00	Peralta
Status / Debug LEDs	LG R971-KN-1-0-20-R18	ams-OSRAM	0805 SMD, ~20mA, RX/TX indicators + GPIO status ×5	$0.15 ea	DigiKey
Tactile Buttons	CTS 222AMVBAR	CTS Electrocomponents	SPST-NO, 0.05A 12V, gull-wing SMD ×2 (BOOT + ENABLE)	$0.22 ea	DigiKey

Estimated Total Core Component Cost

≈ 35 – 37 USD per board
(Excluding passives, PCB fabrication, and shipping)

Cost Discussion

Overall, the total cost for this subsystem is well justified given its capabilities. The ESP32-S3-WROOM-1-N8R8 is the second largest single expense, but for a Wi-Fi-capable board with integrated PSRAM, there is no practical alternative. At $6.13, it integrates a dual-core processor, RF front end, PCB antenna, BLE, Wi-Fi, native USB, and 8MB PSRAM, the last of which is a hard requirement for the OV5640 camera driver to allocate frame buffers at usable resolutions.

The Adafruit OV5640 camera breakout at $17.50 represents the largest line item, but is justified by the exploration device use case, visual data capture and streaming over MQTT is the defining function of this subsystem. Instructor written approval has been obtained for use of this daughter board per EGR314 requirements.

Three deliberate design decisions helped control cost elsewhere:

Upgrading from N4 to N8R8 added only 1.07 USD while unlocking full camera functionality, without PSRAM the 17.50 USD camera investment would be unusable.
Switching to the AP63203WU-7 instead of a higher-end regulator saved over $1 per board while still comfortably meeting the ESP32's 2A current requirements.
Using the ESP32-S3's native USB interface eliminated the need for a CP2102N USB-to-UART bridge chip, saving roughly $4 per board while maintaining full programming and debugging capability.

The protection components (Schottky diode + board mount fuse) and debug hardware (LEDs and tactile switches) add minimal cost individually but significantly improve robustness, safety, and ease of verification during bring-up.

Altogether, the board achieves strong functionality, full camera integration, compliance with EGR314 requirements, and good debug visibility while staying within a realistic student project budget.
